Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester Principle of Testing Circle samples are grazed by fabrics with compatible material considering the recommended pressure in the trajectory of Lissajous movement, to accomplish certain turns and calculate the tested samples degree of pilling.

Nancy Cao

Principle of Testing

Circle samples are grazed by fabrics with compatible material considering the recommended pressure in the trajectory of Lissajous movement, to accomplish certain turns and calculate the tested samples degree of pilling.



Martindale Abrasion and Pilling Tester
Fig.1 Martindale Abrasion and Pilling Tester

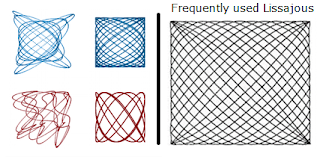

Figure 2 below is frequently used though there are four types of Lissajous.
Lissajous
Lissajous

How to Test Abrasion and Pilling?

[youtube src="-UBR19OR7u0"][/youtube]

Procedure for Testing

  1. For 8 hours the tested sample should be kept in the laboratory surrounding.
  2. Get a sample from the compressed section of the tested sample (it should be detached to the transfer site if it turns out to be a shoe pad.
  3. Take out the load and make sure the shaft of the machine is loaded
  4. Take out the test fixture and the uppermost plate.
  5. Device for specimen: untighten the fixing ring found on the test fixture, the press tablet sample should be taken off, the test fixture base is where the sample will be placed, between the specimen and the test fixture base a gasket should also be placed. fixed with the ring is a press sample placed on the sample gasket.
  6. Friction cloth device and wool felt: untighten the fixing ring around the fixing screw, put the friction cloth on the placed wool felt on the base, in the middle of the friction clothe is where the 2.5kg pressure should be placed, tighten back the lock fixed screw and fixed ring.
  7. The load shaft (12KPA) should be placed through the uppermost flat hole, the uppermost plate should also be fixed back.
  8. Test fixture face while a sample is down, it should be placed on the base fixture, so that the shaft load is properly inserted into the circular groove of the test fixture the load shaft must be adjusted against the circular groove of the test fixture.
  9. Following the official set times, start testing after pushing the switch, shut down should be automatic when acquiring the pre-set times.

Martindale Abrasion Tester Parameters


Specification Value
Number of Stations 8
Count Display Expected Count 0~999999 times
Accelerated Count 0~999999 times
Maximum Movement 24±0.5mm / 60.5±0.5mm
Quality of Compress Materials Holder 200±1g
Small Hammer 395±2g
Large Hammer 595±2g
Grinding Block Effective Friction Diameter Type A 200g(1.96N) Friction Head ¢ 28.8 -0.084mm
Type B 155g(1.52N) Friction Head ¢ 90 - 0.10mm
Dimension (L ×W ×H) 680 × 570 × 400mm
Weight 120 Kg
Power 220 /110 V 50/60 Hz


Precautions During Martindale Abrasion and Pilling Test

  1. To determine (times of rub) check intervals, it is meant to prevent fabrics grazing more than pre-set times.in testing abrasion, worn out of samples should be prevented, or else grazing times won’t be accounted for. When checking the apparent differences, determining the check intervals is to prevent missing graze times that is seen on the sample surface
  2. Loosen conditions of the samples tested are to be left in a polished, airy plane of acceptable atmosphere for 18hours at least. when samples are to be taken, there should be at least a distance of 100mm from the cloth, enough samples should be taken (3 pieces at least) from the samples in the laboratory, also gather all information concerning fabrics.

Precautions During Martindale Abrasion and Pilling Operations

  1. Immediately after a test the friction clothe should be replaced because it cannot be used several times.
  2. Wool felt can only be replaced if the surface is stained or worn out.
  3. During the Martindale abrasion test the pad of the shoe should be removed with the clothing.
  4. Abnormal conditions on sample surface such as broken yarn, serious wear or serious pilling, fluff etc. make the tested samples to be judged as defective after each testing.
  5. Try and pay extra attention to prevent fluff during the cutting of edges to prevent mass loss and difference in appearance.
  6. Ensure to consider personal safety and operation during the apparatus operation process.
